高速熱熔膠涂布機 熱熔膠復合機

關鍵字：熱熔膠涂布機,高速涂布機,熱熔膠復合機,面料復合機,無紡布復合機

在線詢盤

更新時間：2012-05-28

供應商旭騰熱熔膠涂布機械有限公司

所屬分類紡機,印染整理機械

類型印染后整理設備

用途熱熔膠涂布機

型號 RTC

詳細介紹

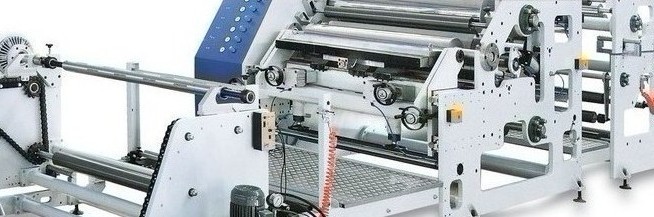

RTC 熱熔膠高速涂布機

主要特點：

1. 采用高精密涂布頭，涂布控制精度和使用壽命大大提高，整機式機架，涂布頭位置上下前后可重復定位，靈活使用。

2. 120m/min高速運轉。

3. 整機西門子PLC控制，操作穩定，簡單，自動化程度高。

應用范圍：RTC系列熱熔膠涂布機可以用于生產：雙面膠帶、布基膠帶、雙面泡棉膠帶、清潔膠帶、牛皮紙膠帶、美紋膠帶、鋁箔膠帶、纖維膠帶、導電布、不干膠商標、廣告寫真耗材等。

RTC High-speed Hot Melt Coating Machine

Range of application

RTC High-speed Hot Melt Coating Machine is used to make double-sided adhesive tapes, cloth-base tapes, double-sided foam tape, cleaning tape, kraft paper tape, masking tape, aluminum foil tape, fiber tape, medical dressing tape, self-adhesive tape, shoe material and so on.

Main characteristic

1. Adopted the high precision coating head, which will greatly improve the precision of the coating control and service life, adopt whole frame, the slot die can adjust any site like up and down or before and after, repeat positioning, flexibility when operation.

2. 120m/min operation.

3. The machine adopts PLC(Siemens brand) programming controller, then operation equality and simple for the automatic control.

Technical parameters

Model	型號	RTC
Coating width	涂布寬度	400-1500mm
Coating weight	涂布量	15-200g/㎡
Coating speed	機械速度	120m/min
Unwinding dimensions	放卷直徑	1000mm
Rewinding dimensions	收卷直徑	700mm
Correction device	糾編裝置	2 set
Length of machine	長度	8500mm
Height of machine	高度	2350mm
